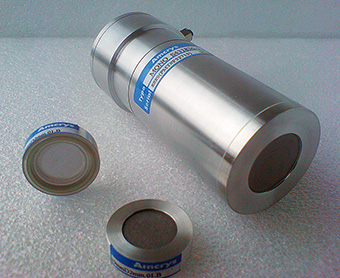

X-ray Detectors

X-ray detectors based on NaI(Tl) crystals are applied for low gamma energy and X-ray detection in the range of photon energy from 5 to 60 keV.
Aluminum or beryllium entrance windows are used for standard detectors. Both open window and integral assemblies with photosensitive device are available.

X-RAY
  • Additional information
    and features:
  • Markets
    and applictaions
  • Available dimensions
  • Related documents
  • production of any dimensions and design;
  • reflecting material with the highest characteristics
  • photosensitive devices (PMT, SiPM or PSPMT) are individually selected and tested for each scintillator
  • integral or plug-in voltage divider, preamplifier, high voltage generator and other electronic modules for optimal operation
  • resistance to mechanical, climatic and temperature loads
  • perfect scintillation parameters of products
  • products reliability is confirmed by the warranty
Nuclear medicine – bone mineral densimetry
Standard sizes: 25.4 mm, 38.1 mm, 50.8 mm in diameter and 2.5 mm thick
