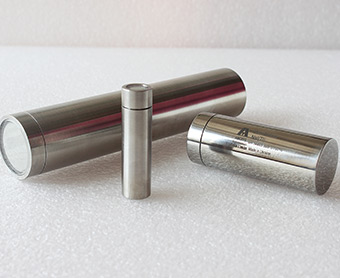

Ruggedized Detectors

Ruggedized detectors based on polycrystalline NaI(Tl) and CsI(Na) scintillators are used for gamma radiation registration in the photons energy range from 20 keV to 10 MeV in the temperature range from -20°С to 175°С with the increased resistance to shocks and vibrations in harsh conditions at logging application. Ruggedized detectors with improved mechanical and thermal characteristics are applied for gamma-ray logging in gas and oil industry. To provide increased mechanical hardness ruggedized detectors have a damping system for qualitative work within the product lifetime.

RUGGEDIZED
  • Additional information
    and features:
  • Markets
    and applictaions
  • Available dimensions
  • Related documents
  • production of any dimensions and design
  • soldered quartz optical window and welded stainless steel or titanium housing
  • reflecting material with the highest characteristics
  • high-temperature PMTs are individually selected and tested for each scintillator
  • using mu-metal magnetic shield for protection from external magnetic fields
  • increased resistance to mechanical, climatic and temperature loads;
  • perfect scintillation parameters of products
  • demountable, low-background and well-type versions are available
  • products reliability is confirmed by the warranty
Geophysics – well-logging, aerial survey
Cylindrical form: up to 150 mm in diameter
Rectangular form: up to 300 mm long
